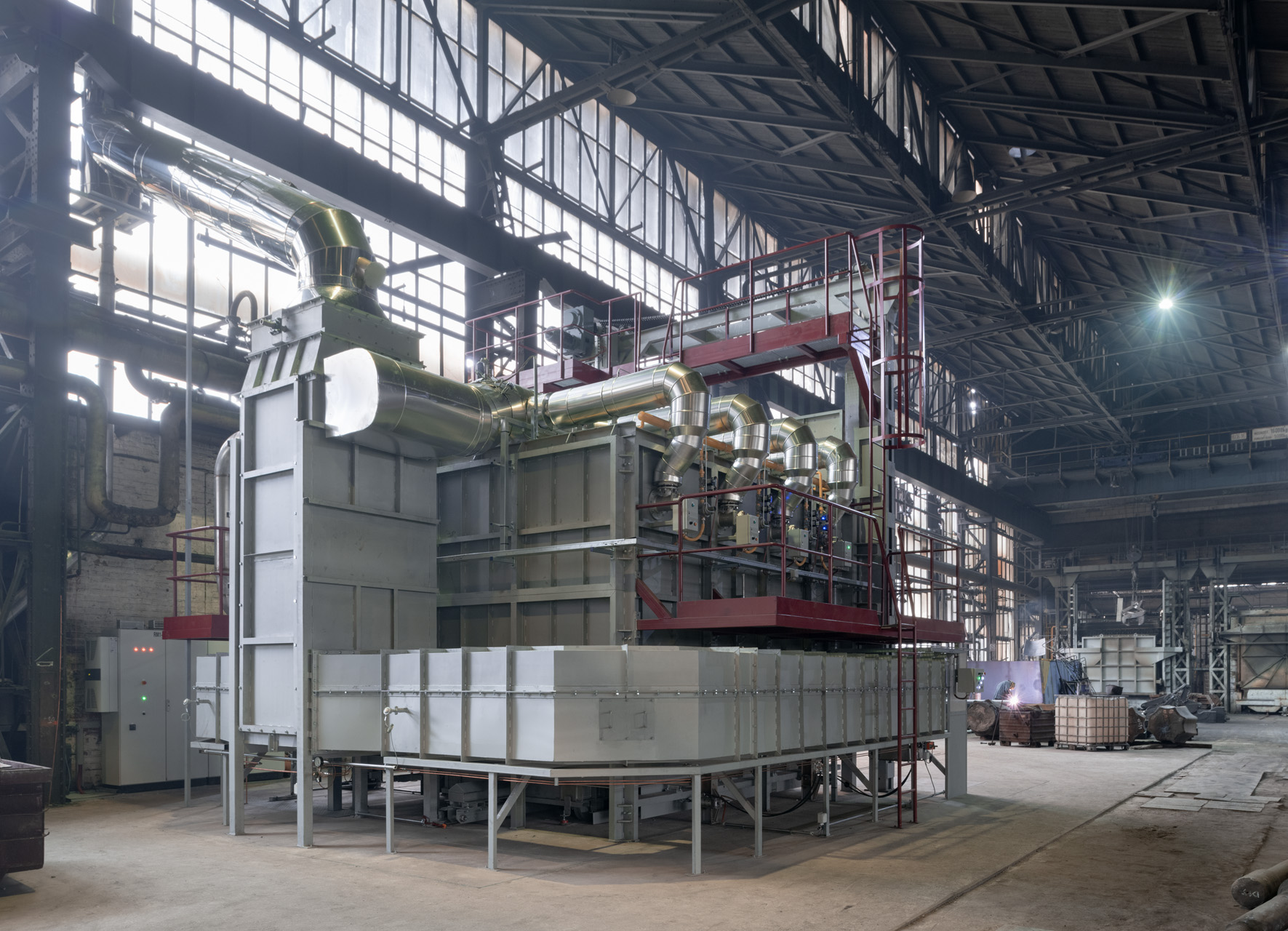

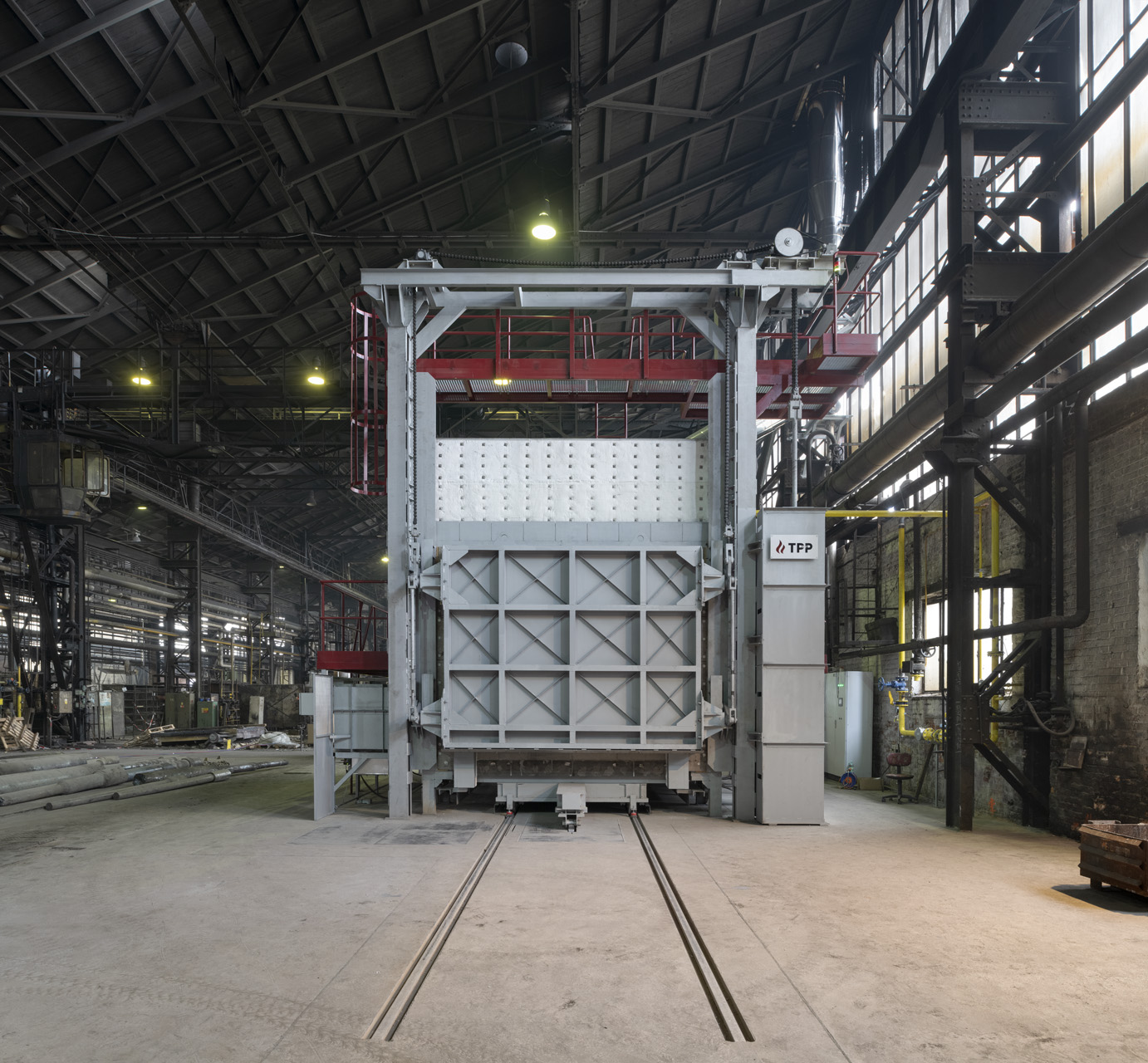

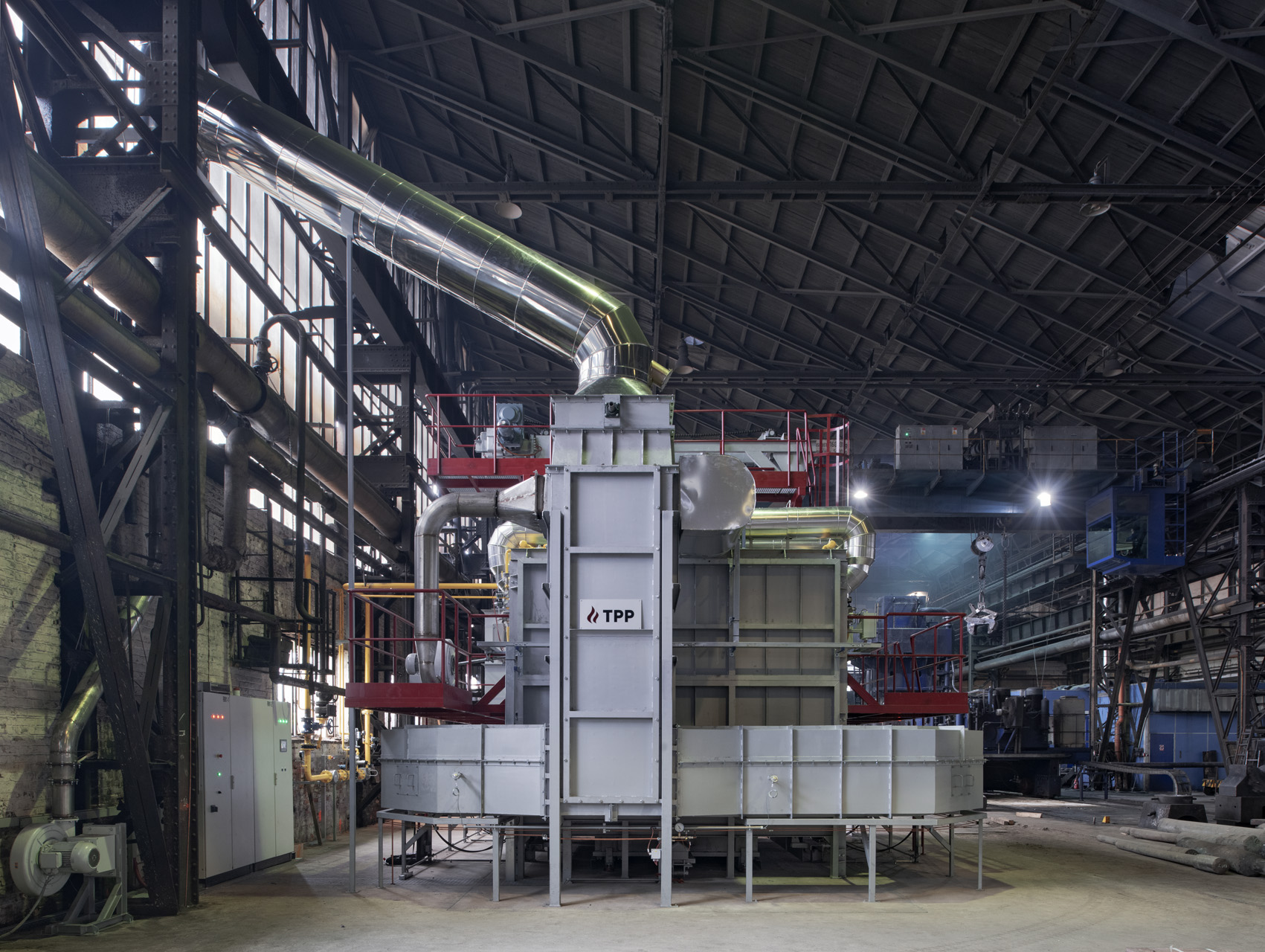

Preheating bogie hearth furnace
Industry references:
Heat treatment of metals
Furnace type:
Bogie hearth furnaces
Realization:
2021
Place:
Czechia
- Preheating of ingots before forging
- Maximum charge 30 t
- Internal dimensions: 2 910 × 4 780 × 2 300 mm
- Maximum temperature 1 250 °C
- Heating system: natural gas, 8 burners, total input 2 400 kW
- Recuperator for pre-heating the combustion air
