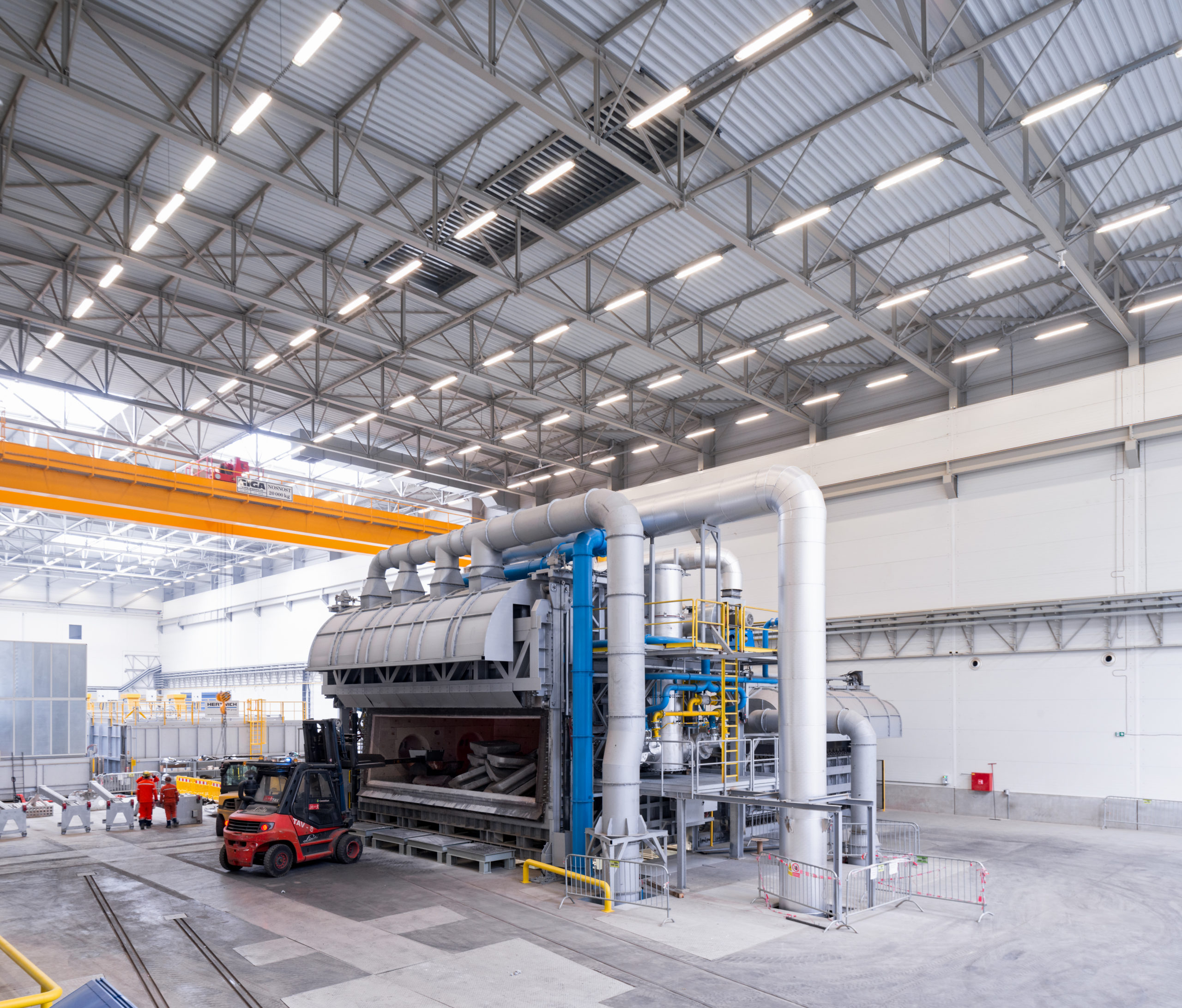

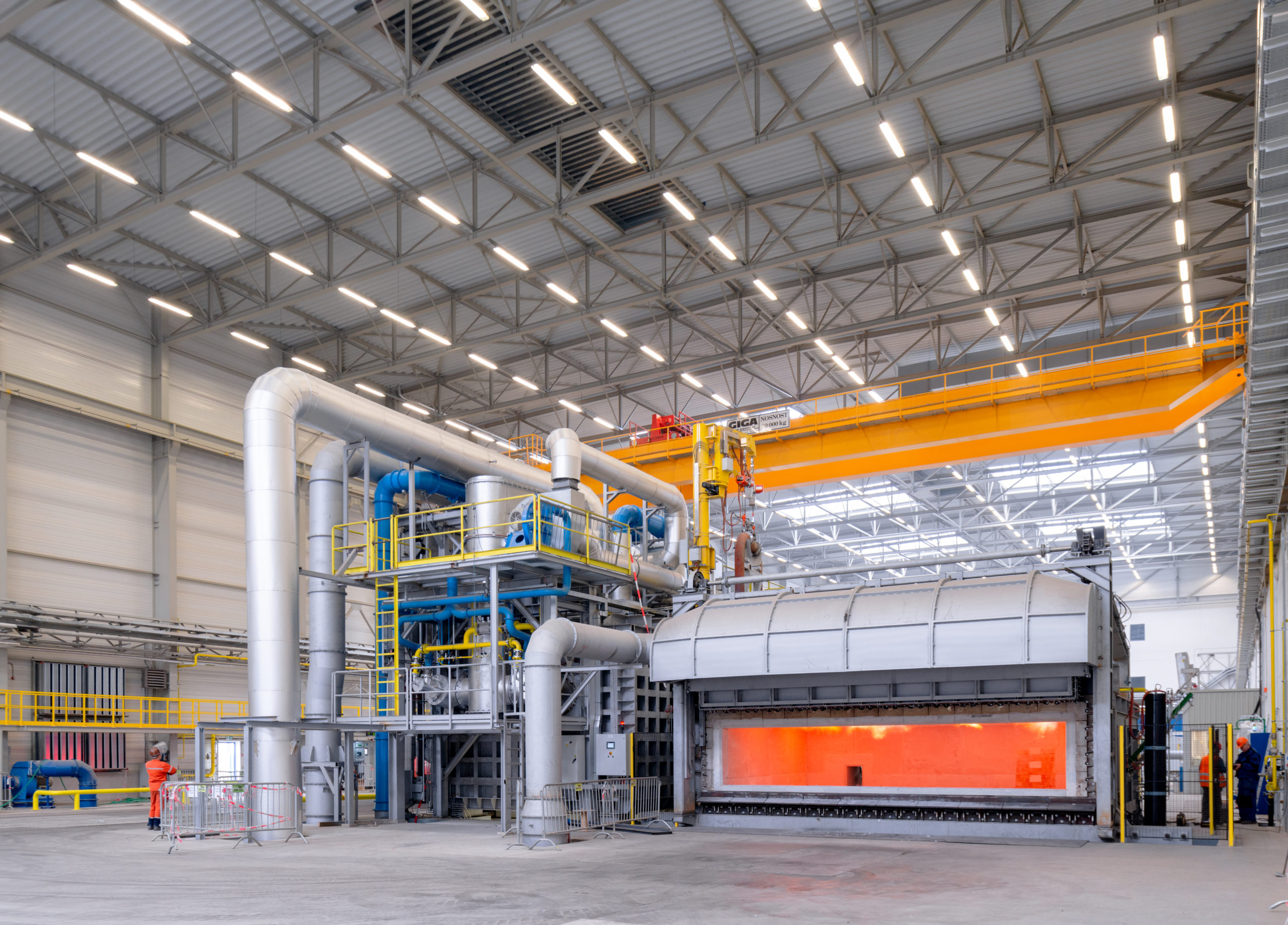

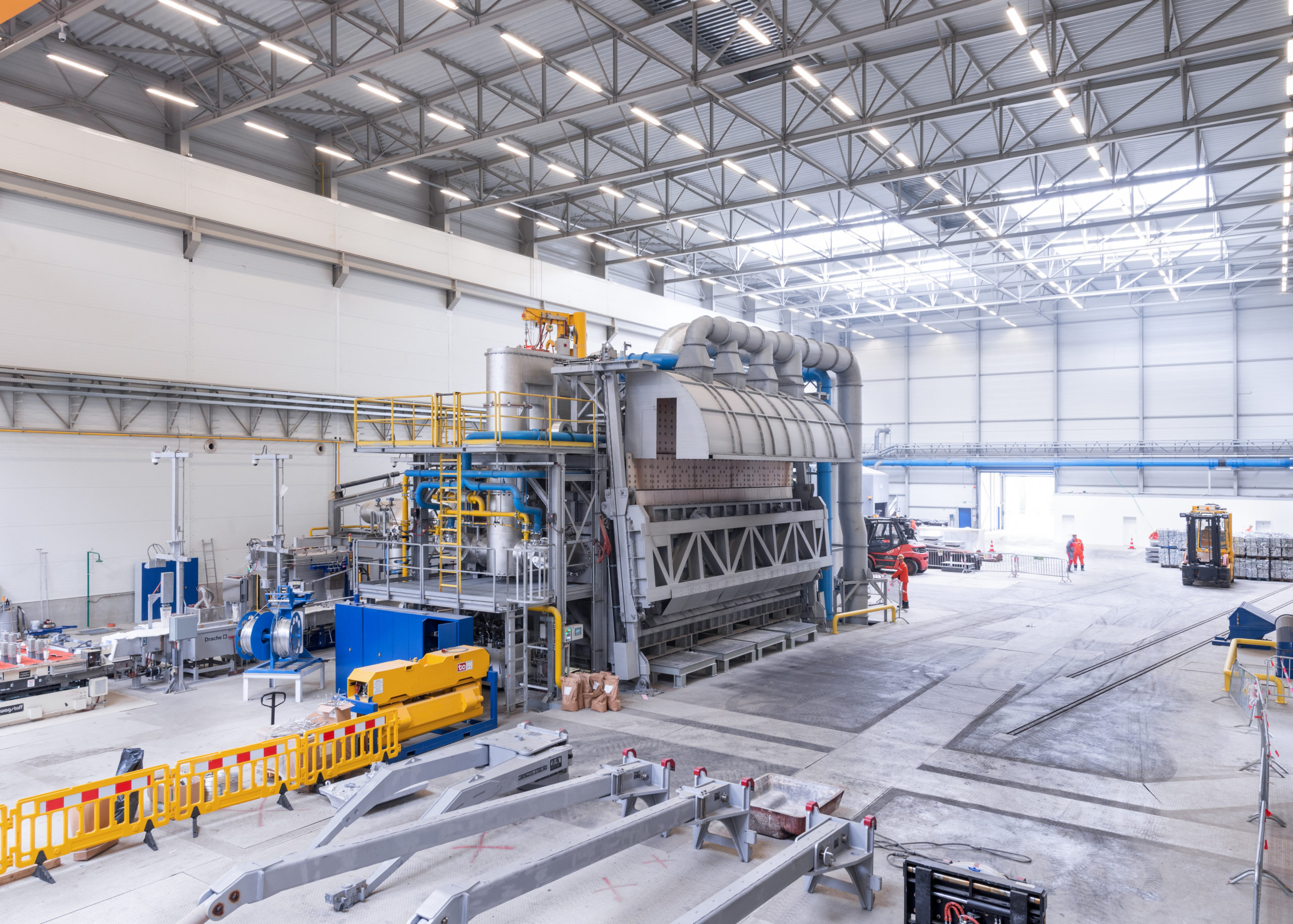

Gas fired 45 t melting and casting furnace
- Melting and casting of aluminum alloy
- Maximum load 45 t
- Internal dimensions: 5 200 × 7 500 × 560 mm
- Maximum temperature up to 1 200 °C for the roof, up to 780 °C bath
- Heating system: natural gas, 2 regenerative burners, total input 8.4 MW
- Electromagnetic stirrer
Similar references
Melting and casting of aluminium alloys
Stationary or tilting furnaces of the tub or crucible type with a charge weight of up to 60 t. The possibility of using low-emission regenerative heating systems.
