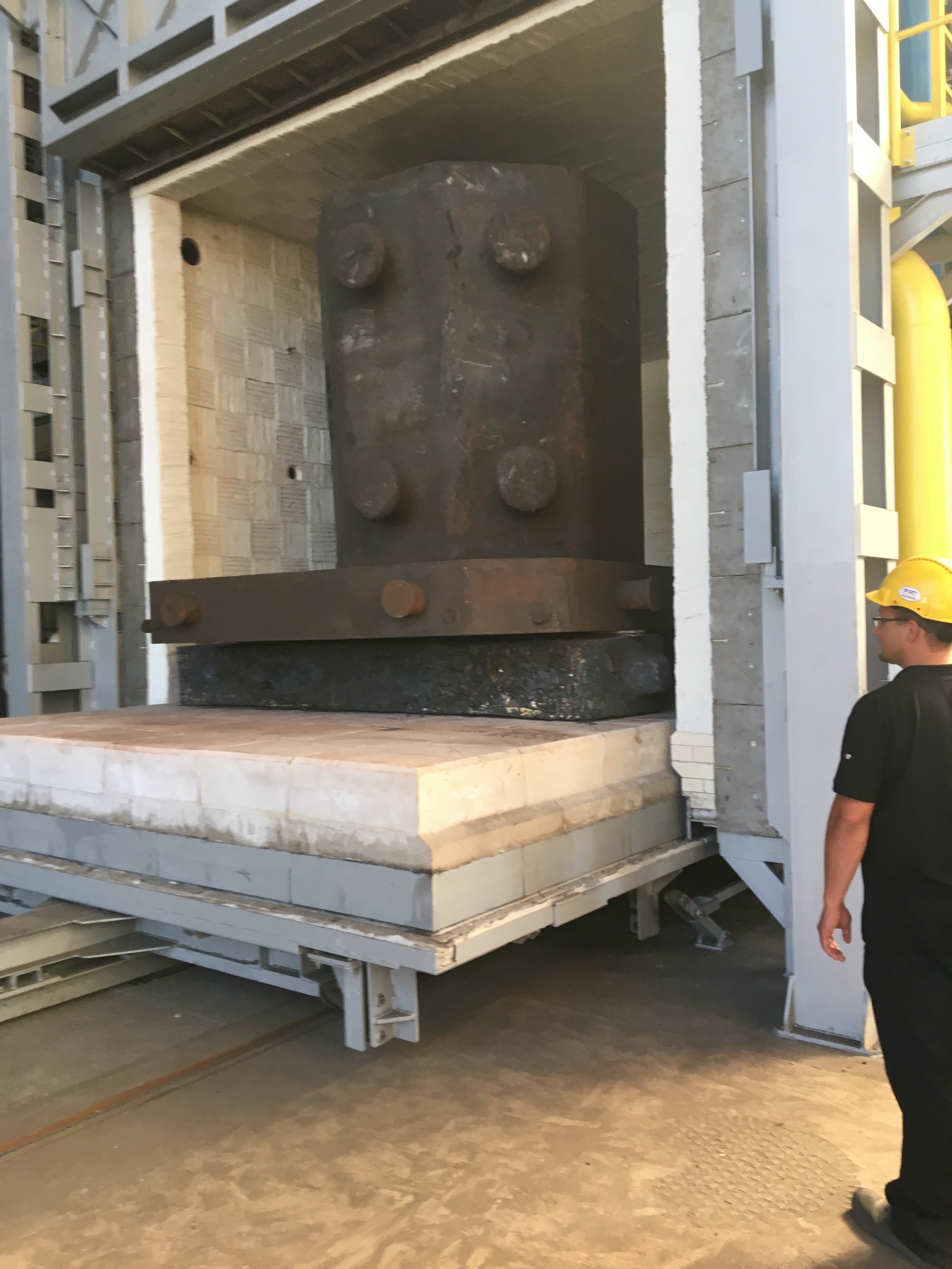

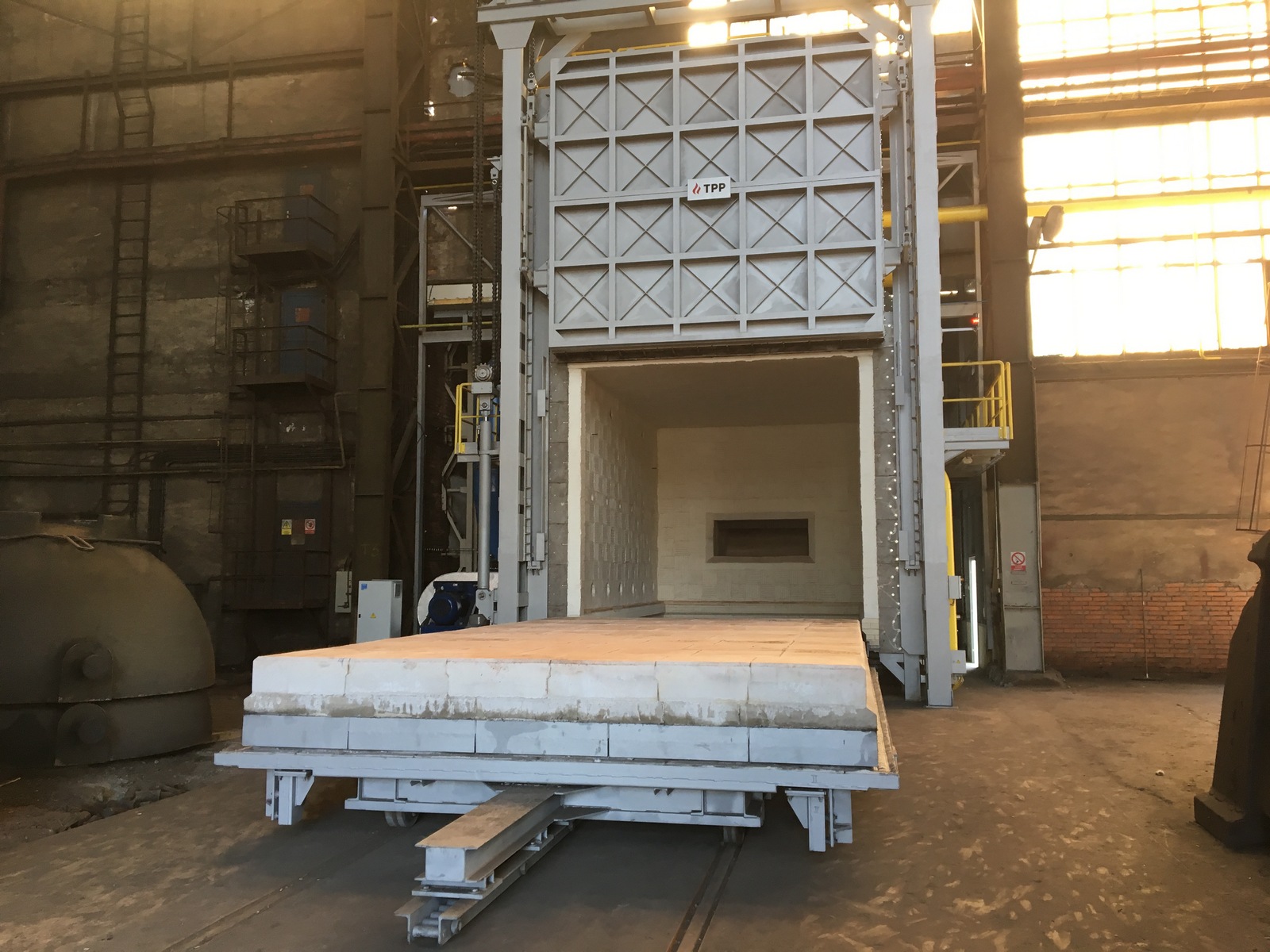

Annealing bogie hearth furnace
Industry references:
Heat treatment of metals
Furnace type:
Bogie hearth furnaces
Realization:
2018
Place:
Czechia
- Annealing of castables
- Maximum charge 120 t
- Internal dimensions: 7 000 × 4 000 × 3 400 mm
- Maximum temperature 1 050 °C

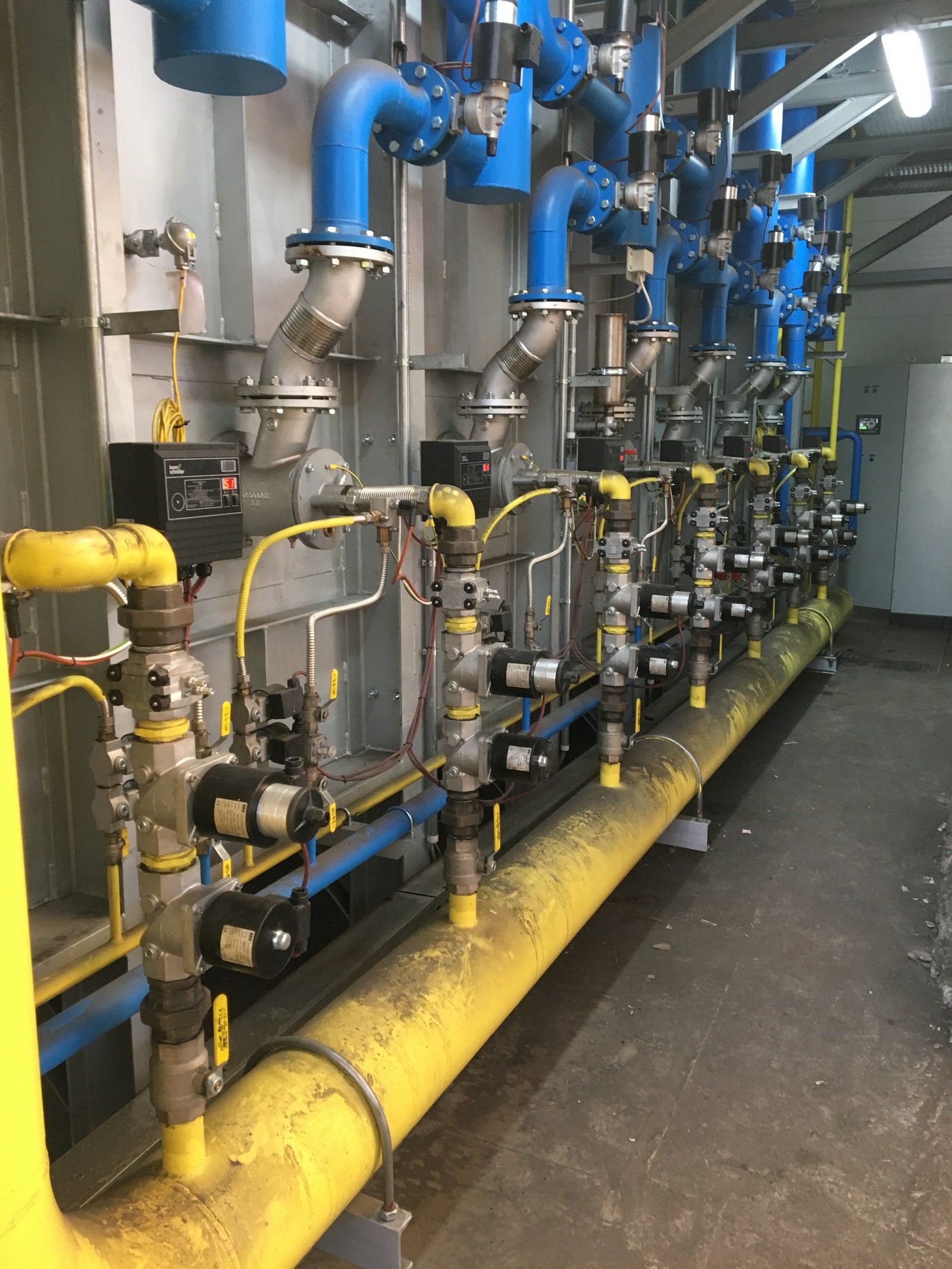

- Heating system: mixed/natural gas, 20 burners, total output 6 400 kW
Similar references
Heat treatment of metals
Furnaces designed for preheating and annealing, for example for homogenization, tempering, forging and hardening. The possibility of using electric, regenerative or recuperative types of heating systems. Temperatures up to 1 350 °C, charge weight up to 400 t. We prepare furnaces according to the requirements of the AMS 2750G (aeronautical industry) or CQI-9 (automotive industry) standards.
